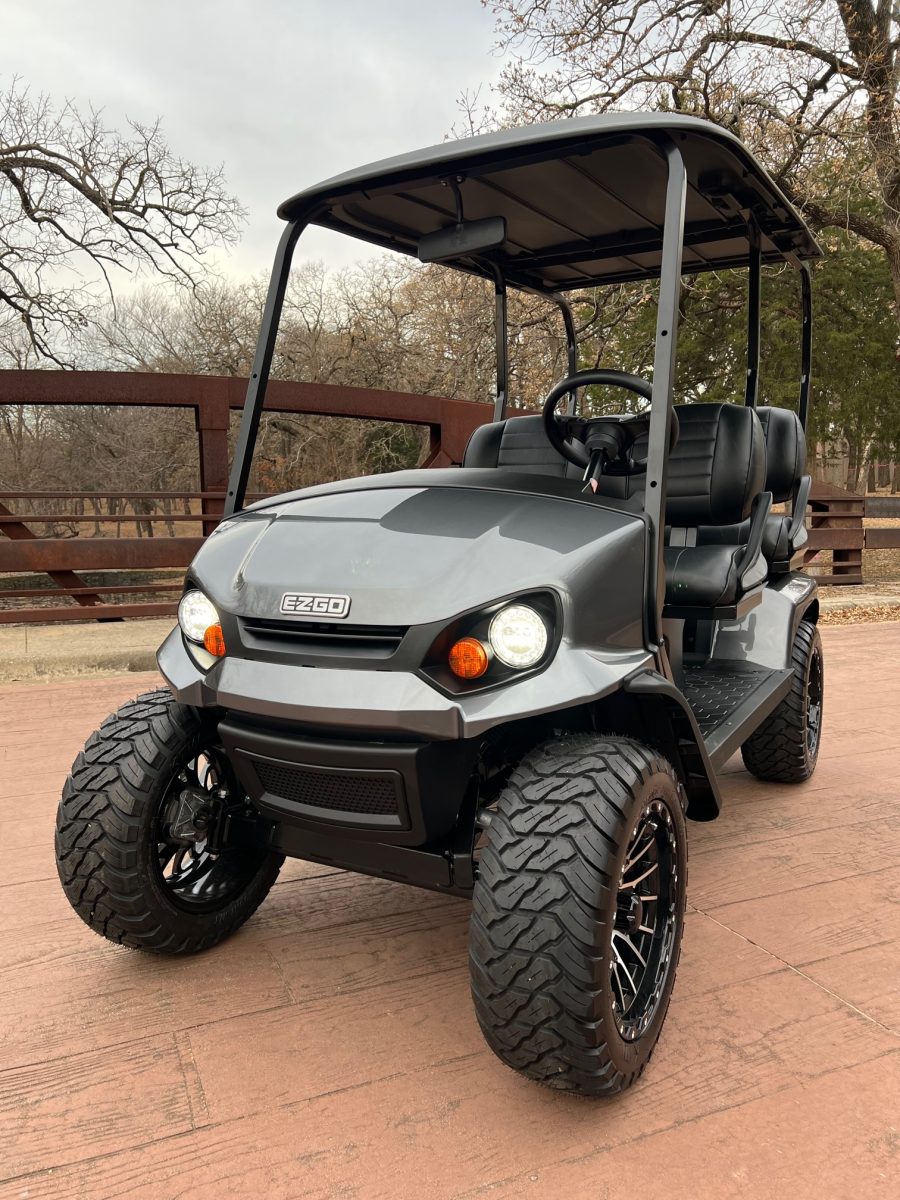

E-Z-GO Liberty ELiTE 4 Passenger Lifted – Charcoal

Power Type: Lithium-Ion // Seating: 4 Passenger
SOLD

About this vehicle

Year:
2023
Condition:
New
Make:
E-Z-GO
Power Type:
Lithium-Ion
Model:
Liberty ELiTE
Location:
Grapevine TX
Color:
Charcoal

Features

80" Canopy
Charge Status Meter
Custom Tire and Wheel Assembly
LED Headlights and Taillights
Lithium Battery
Rear LED Tail and Brake Lights
Turn Signals

Description

ELITE LITHIUM
OVERALL LENGTH 106 in (269 cm)
OVERALL WIDTH 48 in (122 cm)
OVERALL HEIGHT (W/O ROOF) 52.5 in (133 cm)
OVERALL HEIGHT (W/ ROOF) 76 in (193 cm)
WHEEL BASE 76.5 in (194 cm)
FRONT WHEEL TRACK 38 in (97 cm)
REAR WHEEL TRACK 39 in (99 cm)
GROUND CLEARANCE @ DIFFERENTIAL 5.5 in (14 cm)

POWER

POWER SOURCE 56 Volt DC
MOTOR TYPE AC Induction
HORSEPOWER (KW) 11.7 hp (8.7 kW)
ELECTRICAL SYSTEM 56.7V
BATTERIES (QTY/TYPE) Single, 56.7 Vol Li-Ion Composite Module (Standard Configuration)
KEY OR PEDAL START Pedal
BATTERY CHARGER 56.7V Li-Ion (Standard Configuration)
SPEED CONTROLLER 235 Amp AC controller
DRIVETRAIN Motor Shaft Direct Drive
TRANSAXLE Differential with Helical Gears
GEAR SELECTION Dash Mounted FNR/Key Switch
REAR AXLE RATIO 17:1 (Forward)

PERFORMANCE

SEATING CAPACITY 4-Passenger
DRY WEIGHT 914 lb (415 kg) (without batteries)
CURB WEIGHT 960 lb (435 kg)
DASH/ IP STORAGE CAPACITY 1123 in²
VEHICLE LOAD CAPACITY 800 lb (363 kg)
TOW CAPACITY 500 lbs
REAR CARGO RACK LOAD CAPACITY 100 lb (45.6 kg)
TURNING RADIUS 12.85 ft (3.92m)
OUTSIDE CLEARANCE CIRCLE 25.7 ft (7.83 m)
SPEED (LEVEL GROUND) 19.5 mph (31 kph) +/- 0.5 mph (0.8 kph)

STEERING & SUSPENSION

STEERING Self-Compensating Reduction Rack and Pinion
SUSPENSION Leaf Springs with Hydraulic Shock Absorbers
SERVICE BRAKE Dual rear wheel mechanical self-adjusting drum
PARKING BRAKE Self-compensating, single point engagement
TIRES Paramount M/T 23×10-14

BODY & CHASSIS

FRAME Welded Steel with DuraShield Powder Coat
FRONT BODY & FINISH Injection Molded TPO
BACK BODY & FINISH Thermoform ABS
AVAILABLE BODY COLORS Black, Bright White, Flame Red, Ocean Grey, Slate, Metallic Charcoal
AVAILABLE SEAT COLORS Gray on Black
AVAILABLE PREMIUM SEAT COLORS Black, Mushroom, Gray
