About this vehicle
Features
Description

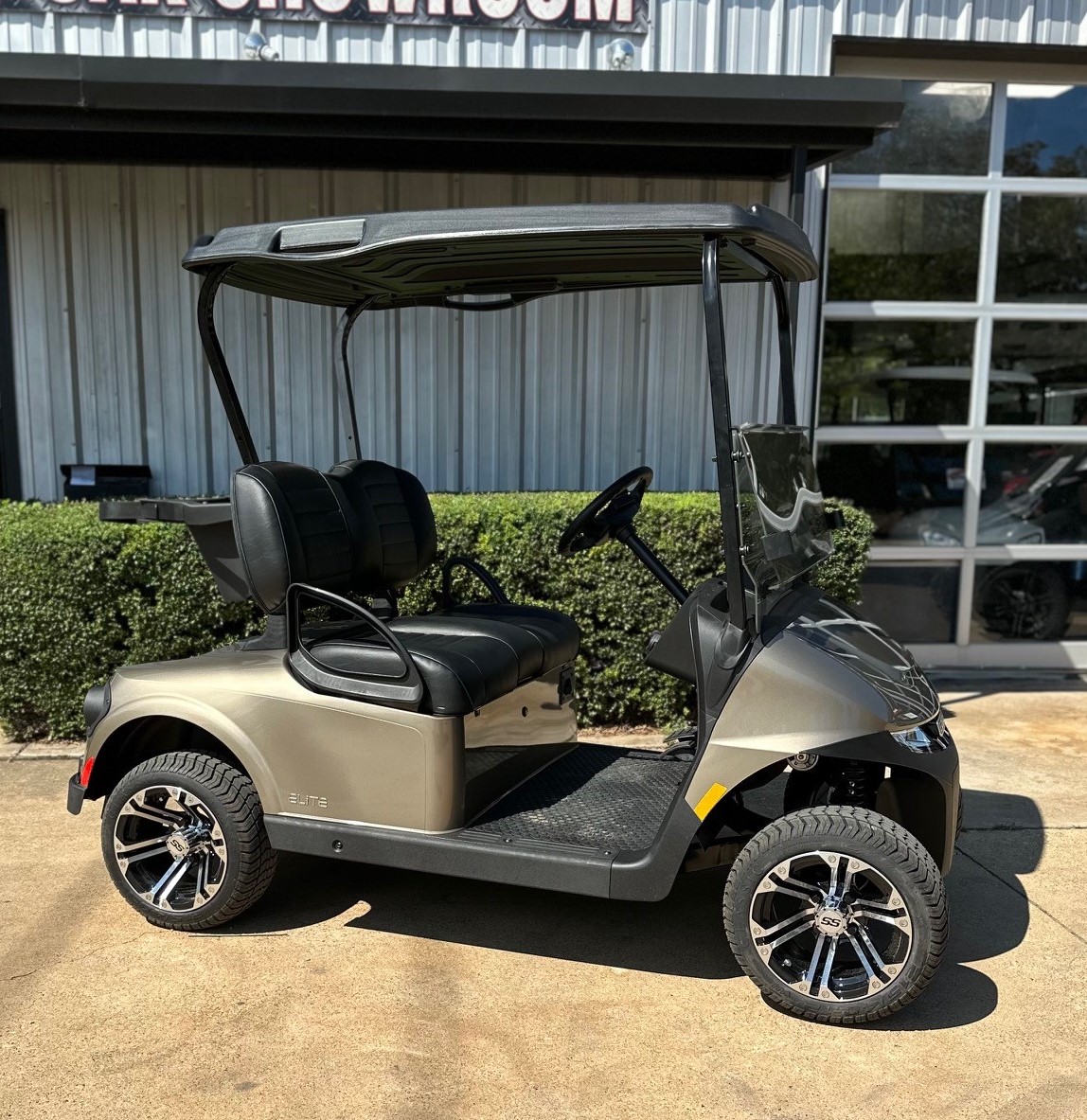

The NEW E‑Z‑GO® Freedom RXV is designed to make the most out of every ride with a wide range of new features including a sleek design and modern dash for maximum convenience. At the heart of it, the Freedom RXV is an easygoing ride with premier performance and unparalleled efficiency, trip after trip. Customize yours with an infotainment system and see why the Freedom RXV is always good to go.
ELiTE
DIMENSIONS
OVERALL LENGTH 94.5 in (240 cm)
OVERALL WIDTH 47.0 in (119 cm)
OVERALL HEIGHT (W/O ROOF) 46.5 in (118 cm)
OVERALL HEIGHT (W/ ROOF) 69.5 in (177 cm)
WHEEL BASE 66 in (168 cm)
FRONT WHEEL TRACK 35.5 in (90 cm)
REAR WHEEL TRACK 38.0 in (97 cm)
GROUND CLEARANCE
@ DIFFERENTIAL 4.5 in (11 cm)
POWER
POWER SOURCE 56.7 V
HORSEPOWER (KW) 4.4 hp (3.3 kW)
ELECTRICAL SYSTEM 56-Volt

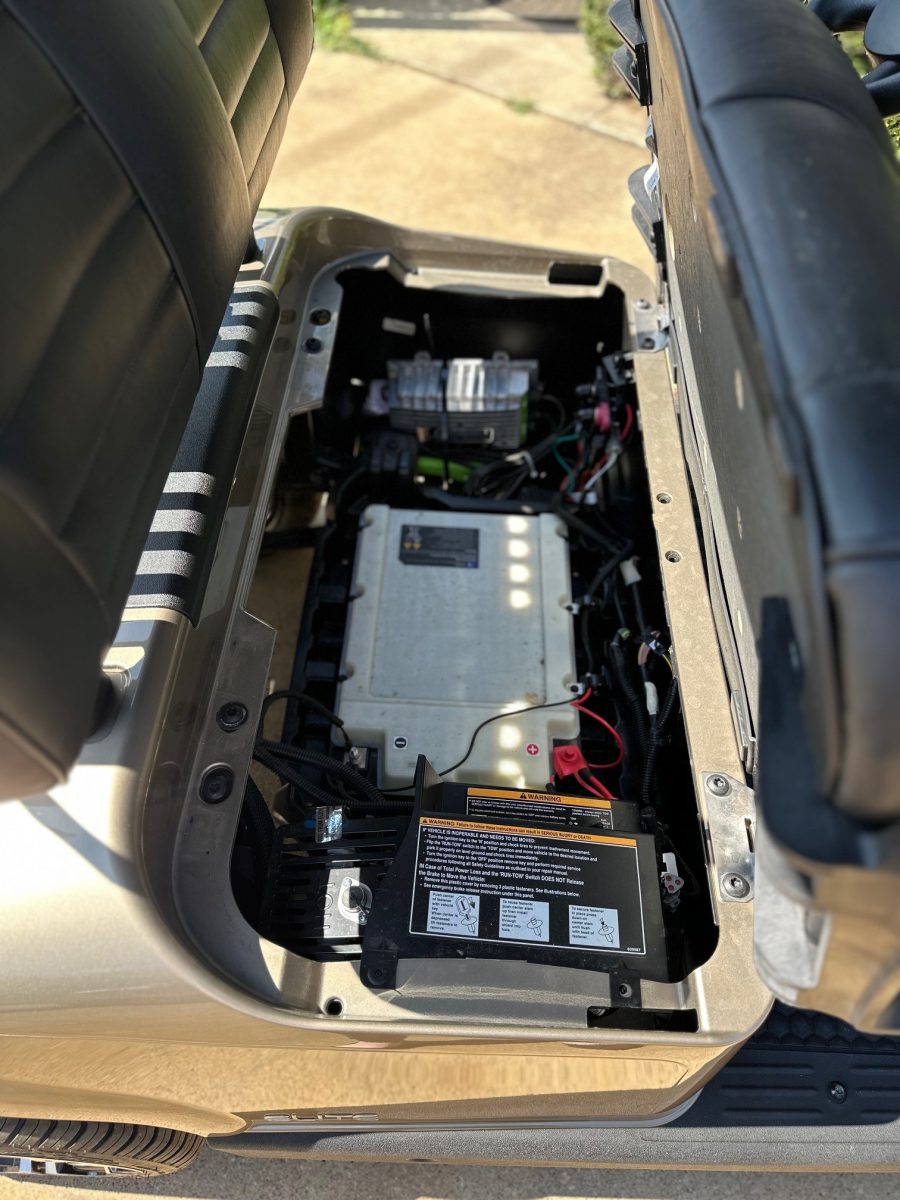

BATTERIES (TYPE) ELiTE 2.2, 56.7V Lithium One,
KEY OR PEDAL START Pedal
BATTERY CHARGER ELiTE Light World Charger 120/230 VAC,
10’ DC Cord N/A
SPEED CONTROLLER 235-amp Solid-State AC Controller N/A
DRIVETRAIN Motor Shaft Direct Drive
TRANSAXLE Limited Slip Differential

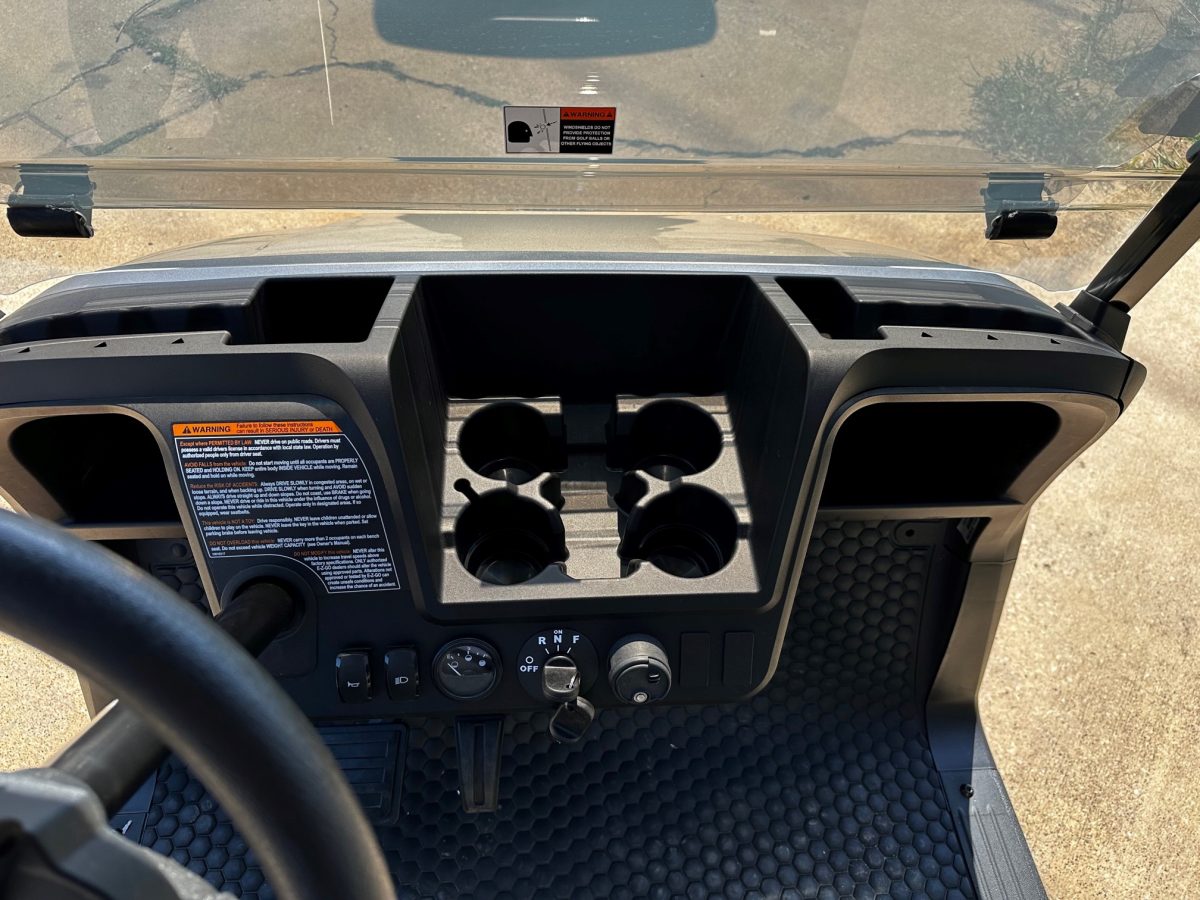

GEAR SELECTION Dash Mounted Forward-Neutral-Reverse
REAR AXLE RATIO 16.99:1 11:47:1 (Forward)
PERFORMANCE
SEATING CAPACITY 2 or 4 Passenger
DRY WEIGHT 599 lb (272 kg) (Without Batteries)
CURB WEIGHT 646 lb (293 kg) (With 2.2 pack)
VEHICLE LOAD CAPACITY 500 lb (227 kg)
OUTSIDE CLEARANCE CIRCLE 19.2 ft (5.8 m)
SPEED (LEVEL GROUND) 19 mph ± 0.5 mph (31 kph ± 0.8 kph)
STEERING & SUSPENSION
STEERING Double-Ended Rack and Pinion

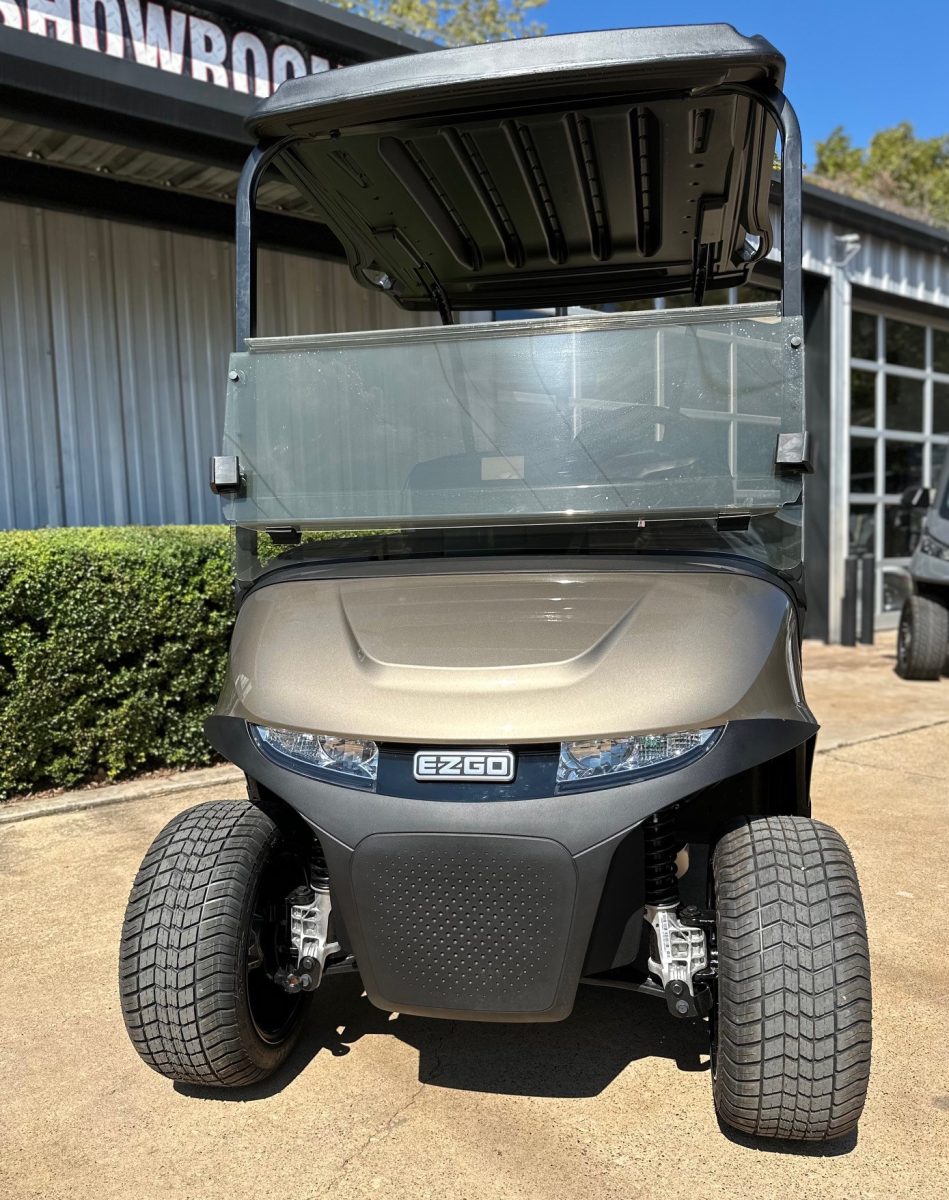

SUSPENSION Front: Independent A-Arm Coil-Over Shock;
Rear: Mono-Leaf Spring With Hydraulic Shocks
SERVICE BRAKE Induction Motor
PARKING BRAKE Automatic Electro-Magnetic Self-Compensating,

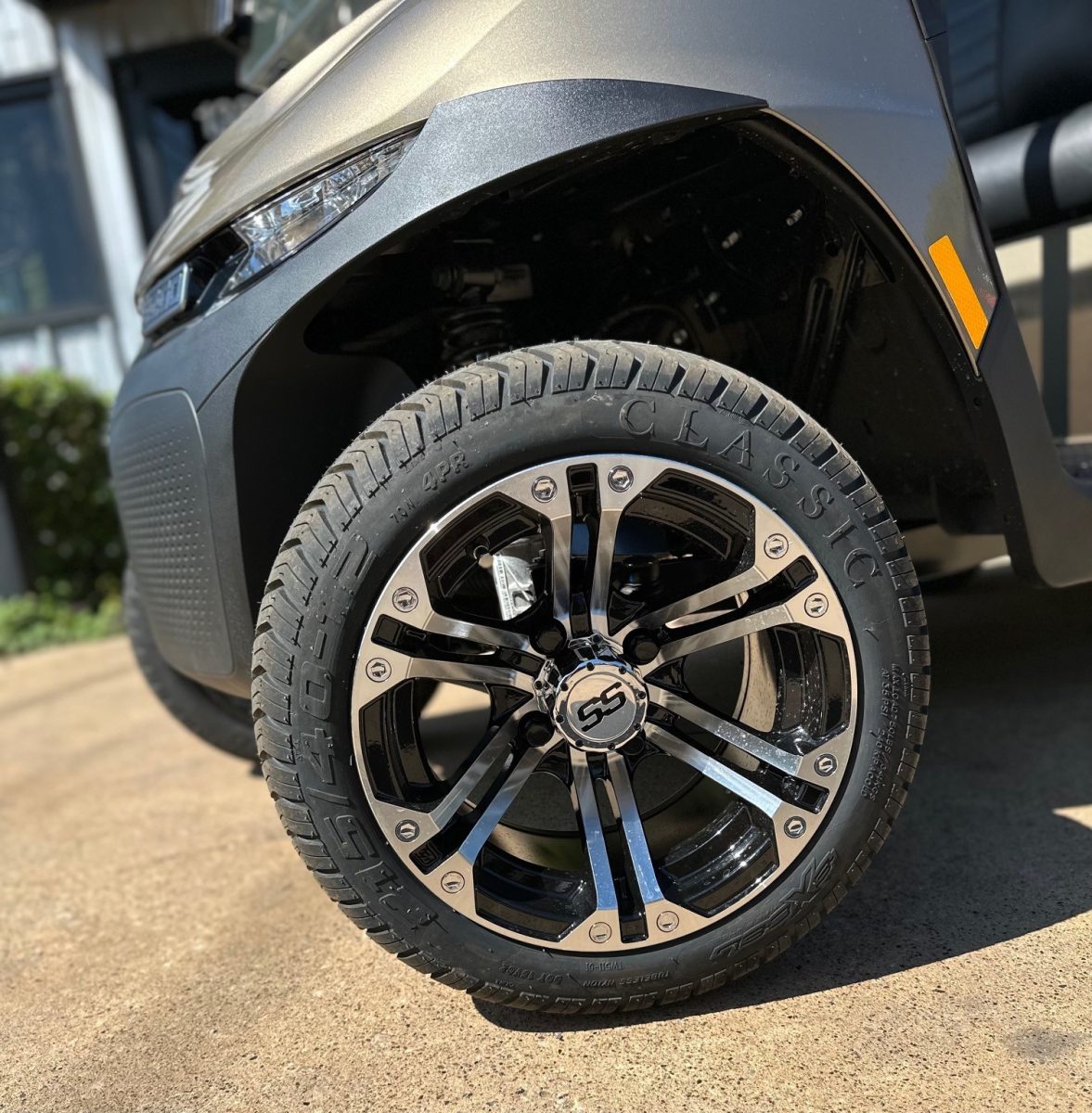

TIRES 18 x 8.50-8 (4-ply rated)
BODY & CHASSIS
FRAME Welded Steel with DuraShield™ Powder Coat
BODY & FINISH Injection Molded TPO
AVAILABLE BODY COLORS Almond, Black, Bright White, Burgundy, Forest Green, Inferno Red, Ivory,
Metallic Charcoal, Ocean Grey, Patriot Blue, Platinum, Slate

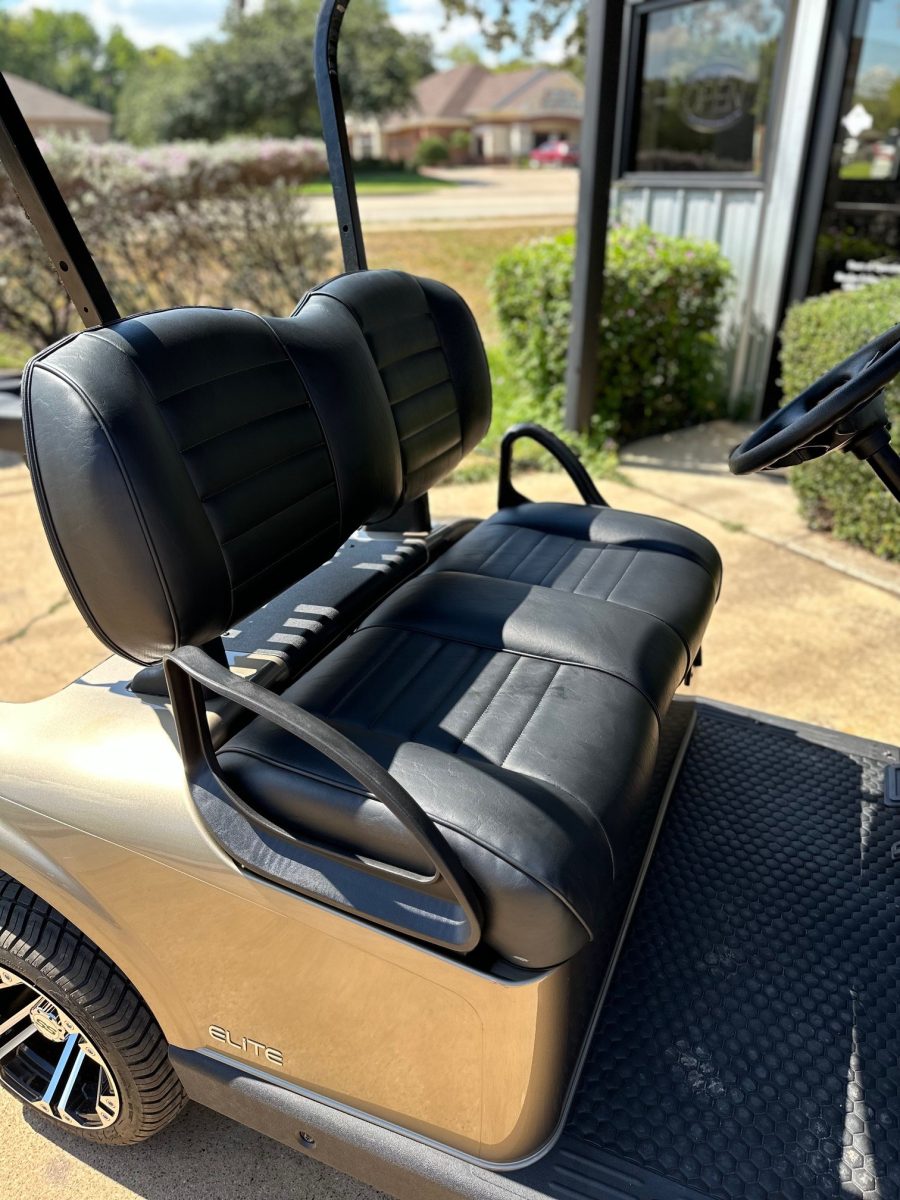

AVAILABLE SEAT COLORS Stone Beige, Black (Custom Colors Also Available)
AVAILABLE PREMIUM
SEAT COLORS Mushroom, Grey, Black, Charcoal, Oyster, White (Custom Colors Also Available)
